SRAM Full Mount/UDH Round, Rear Dropout, Integrated 160/180 Flat Mount: Choose Material/Style
As low as
$149.95
Only %1 left
Part #: Choose an option...
Compatible with the SRAM Full Mount/UDH System
Product Details

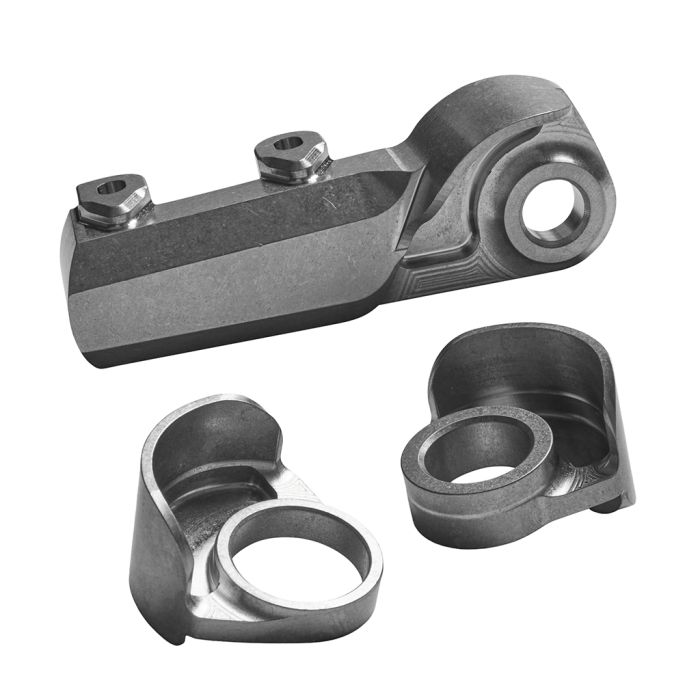

- Materials: 6/4 titanium or 1018 steel, includes right and left frame components
- Application:Â
- SRAM Full Mount/UDH System
- OD: 1-3/4"
- Flanges:
- Width: 1.180"
- Symmetric: Side-to-side chainstay and seatstay
- There is approximately 3 mm per side to make the weld with 7/8" chainstays
- There is approximately 5.5 mm per side to make the weld with 3/4" seatstays
- Push the seatstay outboard as far as possible to avoid SRAM's clearance mask
- Brake Caliper Mount: Flat Mount Integrated for 160 mm rotor (direct) or 180 mm (with adapter, adapter not included)
- Wheel Alignment:
- Choose fixed or eccentric (requires the use of a bushing)
- The chainstay center MUST be 3.5 mm above axle center to meet SRAM's specs
- Use the flats on the bottom of the dropout to index:
- Put a straight edge on the flat and postition it 13 mm +/- 3 mm below bottom bracket center
- Purchase Separately:
- Hanger:Â SRAM Universal Derailleur hangerÂ
- Skewer hole is threaded M12 x1
- Skewer:
- Available at a 23% discount with the purchase of a compatible dropout
- Skewer and dropout compatibility are only guaranteed when used with a compatible Paragon Machine Works product
- Sorry, no returns on skewers. Please check skewer drawings for measurements before ordering
- Note:Â We are not able to advise or make recommendations on compatibility with products that are not manufactured by us
Item sold as pair.
Awesome purple flat mount brake courtesy of Paul Components
Awesome frame building pictures courtesty of Caletti Cycles
More Information
SKU |
SRAM Full Mount/UDH Dropout Integrated Flat Mount |
PDF Drawing |
See individual product. |
STEP File (right click, "save as") |
See individual dropout. |
