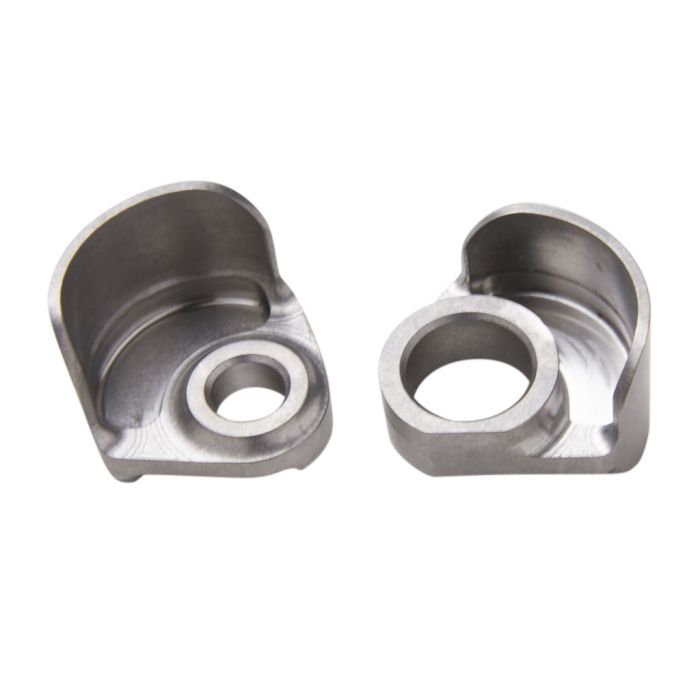

SRAM Full Mount/UDH Round, Rear Dropout: Choose Style/Material

Product Details

• Material: 6/4 titanium or 1018 steel, includes right and left frame components
• Application:
  • SRAM Full Mount derailleurs and Universal Derailleur Hanger

    • Meets all SRAM specs
• OD: 1-3/4"
• Flanges:
  • Width
    • Titanium = 1.180"
    • Steel = 0.985"
  • Symmetric: Side-to-side chainstay and seatstay
  • Place the stays outboard as far as possible to avoid SRAM's clearance mask
• Wheel Alignment:
  • Choose fixed or eccentric (requires the use of a bushing)
  • Use the flats on the bottom of the dropout to index:
• Purchase Separately:

  • Hanger: SRAM Universal Derailleur hanger
    • Skewer hole is threaded M12 x1
  • Skewer:

    • Available at a 23% discount with the purchase of a compatible dropout
    • Skewer and dropout compatibility are only guaranteed when used with a compatible Paragon Machine Works product
    • Sorry, no returns on skewers. Please check skewer drawings for measurements before ordering
  • Caliper Mount:
    • Flat:
      • Because the chainstays are raised 3.5 mm above axle center line, a 160 mm flat mount is required. Select one of the following mounting options:
        • Use two 5/8" OD individual caliper mounts, BK0030 or
        • Use one 5/8" OD individual caliper mount, BK0030 , and on 3/4" OD individual caliper mount, BK0035 (install near dropout)
      • For a straight seatstay, do not go less than 60 degrees between the chainstays and seatstays
    • ISO: Select miter or no miter
    • Post: Select miter or no miter

Note: We are not able to advise or make recommendations on compatibility with products that are not manufactured by us

Item sold as pair.
