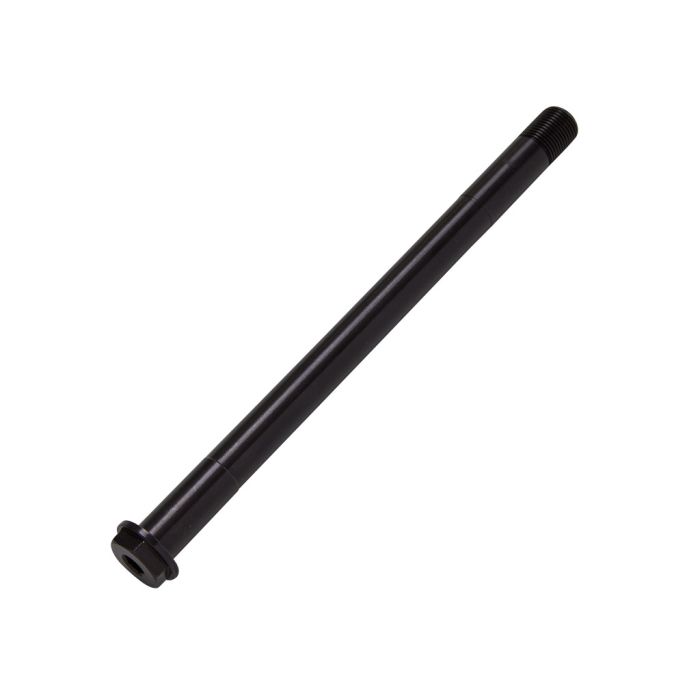

SRAM Full Mount/UDH M12 x 1 Rear Combo Head Skewer: Choose Length

As low as $19.80
Only %1 left
Part #: Choose an option...

Product Details

  • Application:
    • Paragon Machine Works SRAM Full Mount/UDH dropouts/inserts
    • Compatible with our 15 mm wrench bottle opener, BT0002
  • Material: Black anodized 6061 aluminum
  • Thread: M12 x 1 x 12
  • Nominal length (identified by width of hub): See individual product
  • Actual length (from under skewer head to end of skewer): See individual product
  • Combination Head Hexagon: 15 mm external, 6 mm internal
  • Thread End Hexagon: 5 mm internal
  • Brass Split Ring Washer: Included, installed on the inside face of the skewer to reduce galling, see Skewer FAQ page for more information
  • Torque Spec: 8-12 N-m
  • Skewers:
    • Check drawings for measurements before ordering
    • Skewers are available at a 23% discount with the purchase of a compatible dropout: one skewer discount per insert, discount taken in cart.
    • Skewer and dropout compatibility is only guaranteed when used with a compatible Paragon Machine Works product.
    • We are not able to advise or make recommendations on compatibility with products that are not manufactured by us.
    • Sorry, no returns on skewers.

Item sold individually.

More Information
SKU SRAM Full Mount/UDH M12 x 1 Rear Combo Head Skewer
PDF Drawing SRAM Full Mount/UDH Combo Head
