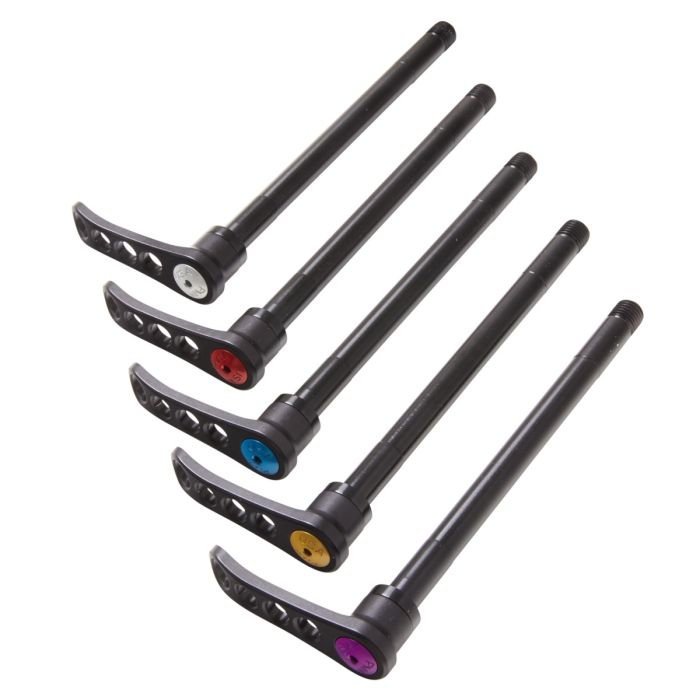

SK4009: 110 x M12 x 1.5 Front Spline Head Skewer

Product Details

• Application: Paragon Machine Works front dropouts that are threaded M12 x 1.5
• Material: Black anodized 6061 aluminum
• Function:
  • By pulling the handle away from the skewer, the handle can easily be rotated to any of 22 positions; this allows for positioning the handle anywhere that is convenient, and for clearance of other components such as brakes or racks
  • The 5 mm hex opposite the handle can be used to tighten the skewer more than what can be done with the handle alone. In the rare event that the handle fails, this hexagon can also be used to remove the skewer
  • A handle design that is easier to pull, particularly with gloves on
  • A spline that is integral to the skewer
• Thread: M12 x 1.5 x 9
• Nominal length (identified by width of hub): 110 mm
• Actual length (from under skewer head to end of skewer): 129 mm
• Internal Hexagon: 5 mm internal
• Brass Split Ring Washer: Included, installed on the inside face of the skewer to reduce galling, see Skewer FAQ page for more information
• Torque Spec: 8-12 N-m
• Skewers:
  • Check drawings for measurements before ordering
  • Skewers are available at a 23% discount with the purchase of a compatible right side insert: one skewer discount per insert, discount taken in cart.
  • Skewer and dropout compatibility is only guaranteed when used with a compatible Paragon Machine Works product.
  • We are not able to advise or make recommendations on compatibility with products that are not manufactured by us.
  • Sorry, no returns on skewers.

Item sold individually.
