Dropouts

Selecting a Dropout

General Information

  • We manufacture a wide variety of rear dropouts in titanium, steel, and stainless steel.

  • When choosing your dropout, consider the type of hub, derailleur, and brake mount that will be used to ensure that compatibility and clearances are met.

Hanger Alignment

  • Hanger alignment for rear dropouts:  click here

Important!

  • Compatibility between components is only guaranteed when using parts made by Paragon Machine Works.

  • We cannot advise or make recommendations for parts made by other manufacturers.

Bending Dropout Tabs

Important!

Please do not bend the tabs on our dropouts to align them with the stays!  Instead:

  • Slot the stays at an angle or use a transition piece like our seatstay/chainstay plugs.

Bent Dropout Tabs

  • Can weaken the dropout
  • Introduce stresses that make further alignment difficult
  • May interfere with how the dropout functions. This is particularly applicable to all our adjustable dropouts
  • ARE NOT WARRANTEED

Round, Rear Dropouts

Simple, clean, elegant. This style of dropout allows the chainstay and seatstay to be oriented at a wide range of angles.

                     RoundRearColoredHangers1-1/8" Dropout

Materials

17/4 Stainless Steel Options:

  • 1-1/8" OD x 22 mm

  • 1-1/2" x 1.040"

1018 Steel Options:

  • 1-1/8" OD x 17 or 22 mm

  • 1-1/2" OD x 1.040"

6/4 Titanium Options:

  • 1-1/8" OD x 1.000 in

  • 1-1/2" OD x 1.040 or 1.100"

Compatibility

  • 10 and 12 mm Hub

Purchase Separately

  • Replaceable Inserts, available in different styles and colors:

    • Traditional hanger

    • Shimano Direct Mount (Road + Mountain)

    • SRAM

  • Skewers:

    • Available in a variety of lengths for 12 mm hangers/inserts

    • 23% off when purchased with a compatible hanger, insert or dropout

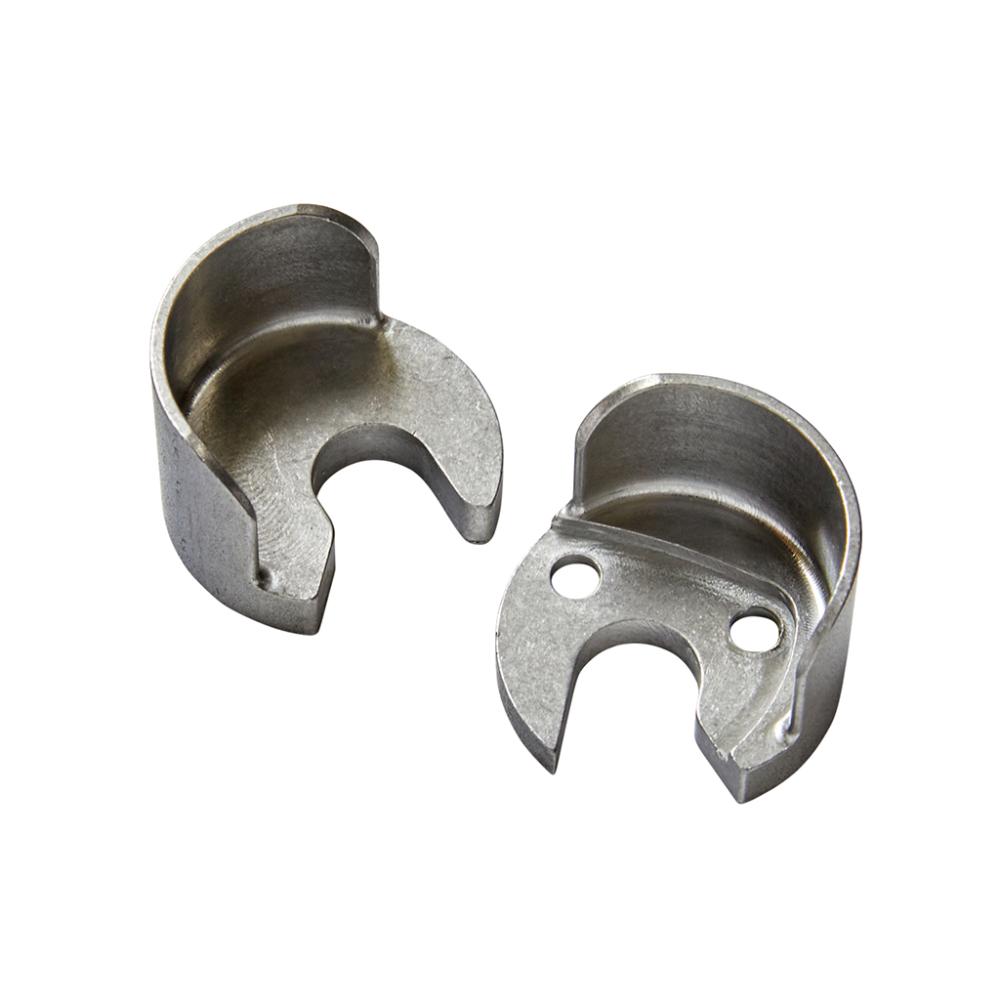

Snap Ring Dropouts

This small, light dropout utilizes a snap ring instead of bolts to secure the hanger for a smaller/lighter profile.

  SnapRingDropout    SnapRingSnapRingHanger

Materials

17/4 Stainless Steel

  • 1" OD x .866"

  • 1-1/8" OD x .866"

1018 Steel

  • 1" OD x .866"

  • 1-1/8" OD x .866"

  • 1-1/8" OD x 1.000"

6/4 Titanium

  • 1-1/8" OD x 1.000"

  • 1-1/4" OD x 1.040"

Compatibility

  • 12 mm Hub

Purchase Separately:

  • Hangers, available in different styles and colors:

    • Traditional

    • Shimano Direct Mount (Mountain + Road)

    • SRAM Eagle

  • Skewers:

    • Available in a variety of lengths

    • 23% off when purchased with a compatible hanger

Syntace Dropouts

These dropouts are compatible with Syntace X-12 system. They accommodate a concentric or eccentric threaded insert in the right frame component to center the wheel in the frame and correct inconsistencies.

Insert                 Syntace Dropouts    SyntaceHanger

Materials

17/4 Stainless Steel

  • 1" OD x 25 mm

1018 Steel

  • 1" OD x 20.5 mm

  • 1" OD x 25 mm

  • 1-1/4" OD x 25 mm

6/4 Titanium

  • 1-1/4" OD x 1"

  • 1-1/2" OD x 28 mm

Compatibility

  • 12 mm Hub

  • Syntace X-12 System

Purchase Separately

  • Compatible Syntace X-12 products
  • Skewers:
    • Available in a variety of lengths
    • 23% off when purchased with a compatible insert

Helpful Information

  • Uses a concentric or eccentric threaded insert in the right frame component to center the wheel in the frame and correct inconsistencies.

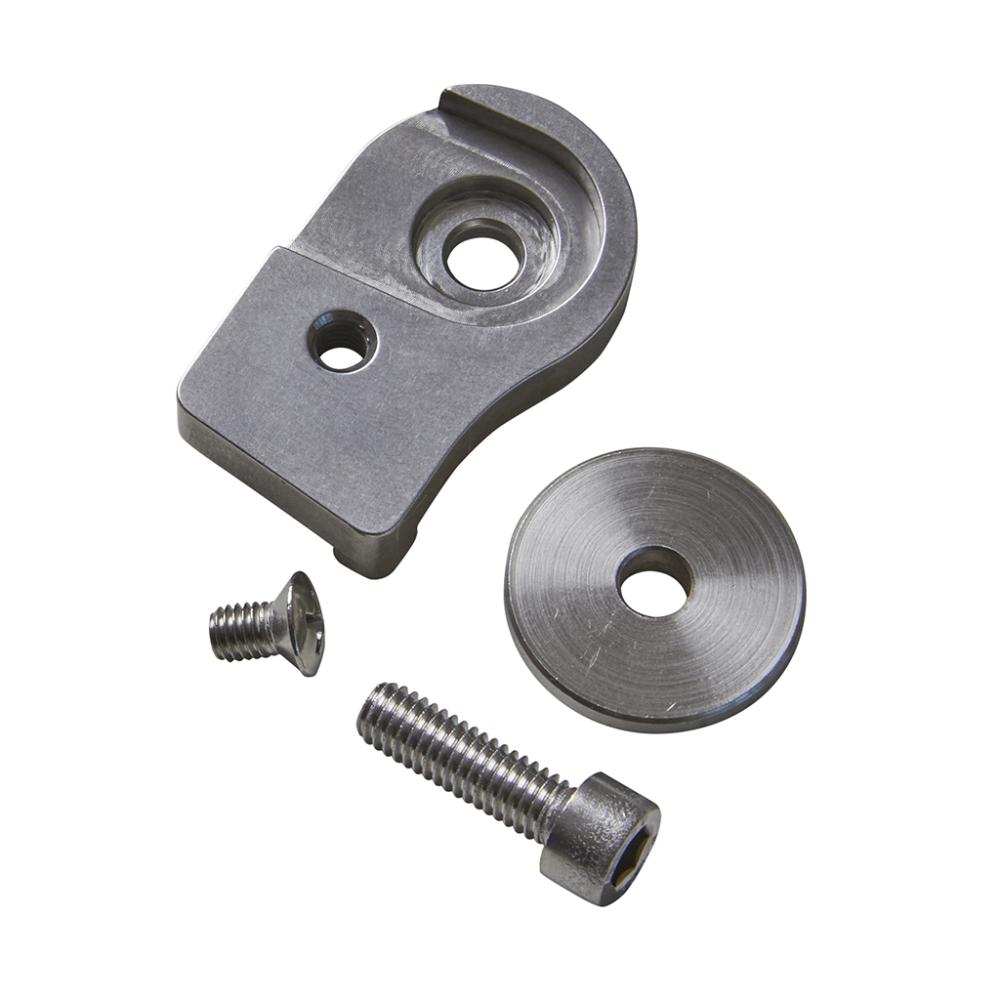

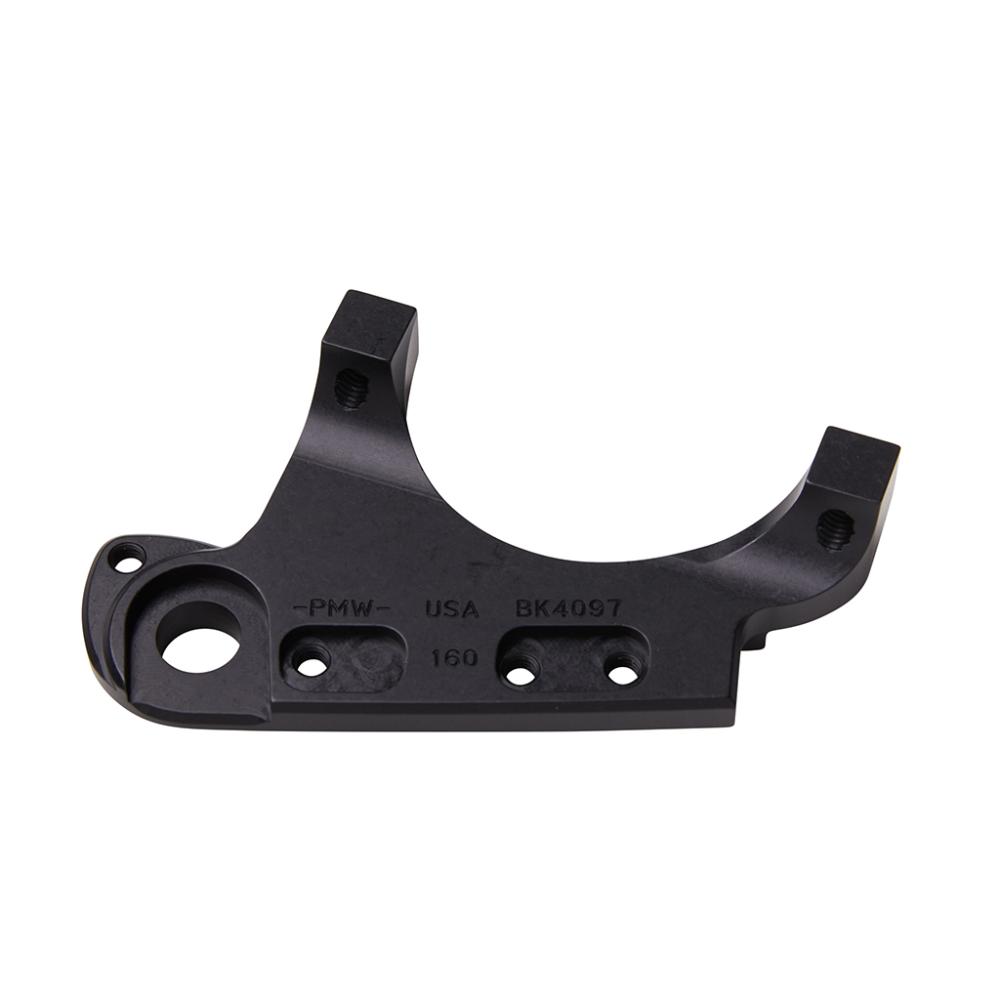

Flat/Post Mount Disc Brake Dropouts with Bolt-on Brake Insert (BoBI)

The bolt-on brake insert (BoBI) allows for different brake configurations with built-in alignment.

          BoBI Dropout             Brake MountBrake Fixture

Materials

  • 17/4 Stainless Steel

Compatibility

  • 12 mm hub

Brake Mount Options:

  • Flat mount for 140 mm rotor

  • Post mount for 160 mm rotor

Purchase separately:

  • Bolt-on Brake Inserts:
    • Available in bare and black anodized 6061 aluminum
  • Fixture
    • Used for holding and alignment of dropout
  • Replacement Hangers, available in different styles and colors:
    • Traditional
    • Shimano Direct Mount (Mountain + Road)
    • SRAM
  • Skewers:
    • Available in a variety of lengths
    • 23% off when purchased with a compatible hanger

Information

  • The seat stay tabs are swept back, allowing stay and caliper clearance for all frame sizes.

  • Perform a mock-up with the caliper you intend to use before building.

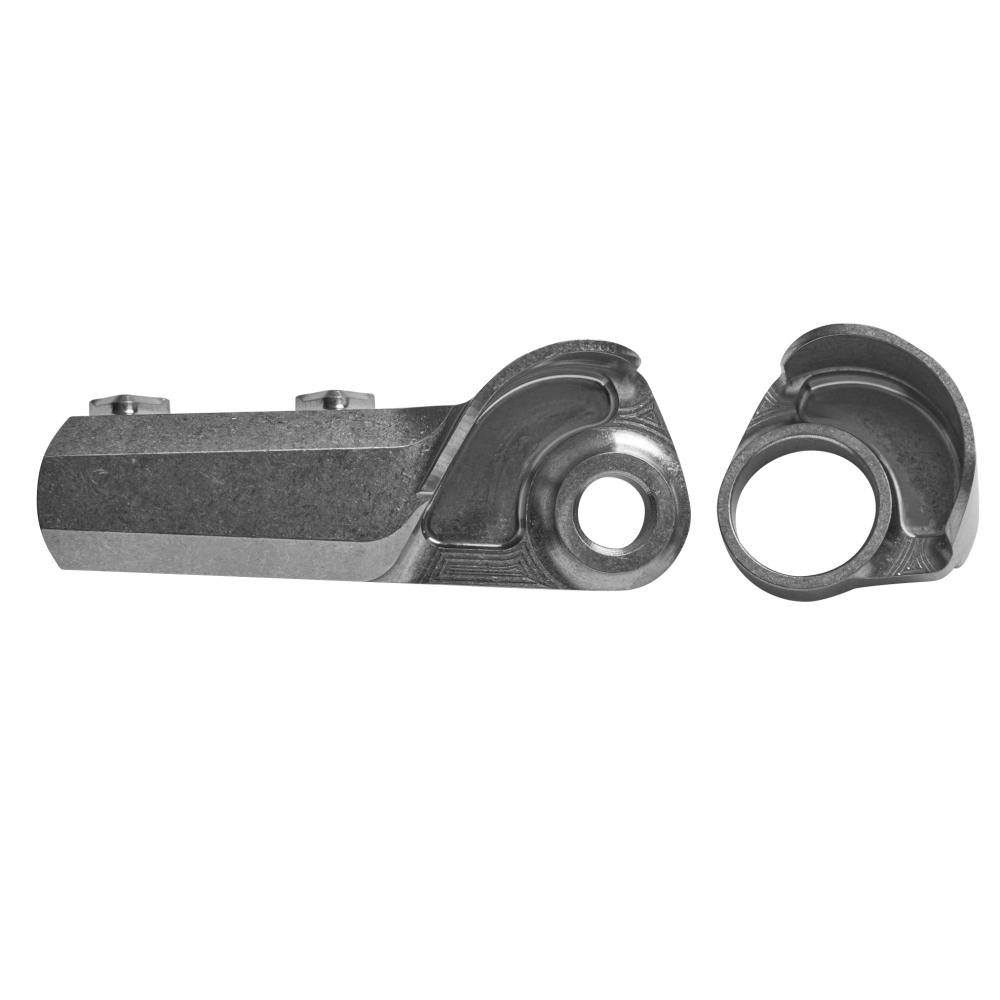

Dropouts for SRAM UDH Hangers and Full Mount Derailleurs

These styles meet all of SRAM's specifications and offer a wide variety of brake options.

Integrated Brake Mount                 SRAM FixedSRAM Dropout

Materials

  • 1018 Steel

  • 6/4 Titanium

Compatibility

SRAM (meets all SRAM specs):

  • Universal Derailleur Hanger

  • SRAM Full Mount Derailleur

12 mm Hub:

  • SRAM Universal Derailleur Hanger has M12 x 1 hole

Brake Mount Options:

  • Flat Mount for 140/160 or 160/180 mm rotor

  • Integrated flat mount for 140/160 or 160/180 mm rotor

  • Weld-on post mount for 160 mm rotor

Eyelets:

  • Some styles available with 4 each M5 x .8

Compatible Products

Purchase Separately

  • Bushing

    • Use concentric for fixturing

    • Use concentric, 0.5, or 1 mm for alignment

  • SRAM Universal Derailleur Hanger

  • Skewers:

    • Available in a variety of lengths

    • 23% off when purchased with a compatible insert

Alignment

  • Eccentric styles require a bushing:

    • Titanium must be welded in

    • Stainless steel and steel must be silver soldered/brazed in

    • Bushing is a structural part of the assembly

  • See individual products for installation instructions

Flat Mount Disc Brake Dropouts

This dropout allows for flat mount disc brake applications; the locating features on the caliper mounts are integral so no fixture is needed.

Flat Mount DropoutFlat Mount No Eyelets

Materials

  • 17/4 Stainless Steel

  • 4130 Steel

  • 6/4 Titanium

All Materials

  • Available in 58 or 70 degree angles

  • Available with 4 each M5 x .8 eyelets, or without eyelets

Compatibility

  • 12 mm Hub

Flat Mount Brake Calipers (included with purchase):

  • Stainless steel and steel: 2 each single caliper mounts

  • Titanium: 1 each double caliper mount

Purchase Separately

  • Replaceable Inserts, available in different styles and colors:

    • Traditional hanger

    • Shimano Direct Mount (Mountain + Road)

    • SRAM

  • Flat Dropout Plugs

  • Skewers:

    • Available in a variety of lengths

    • 23% off when purchased with a compatible insert

Information

  • Compatible  caliper mounts must be welded to the dropout and faced on top post fabrication
  • Locating features on caliper mounts are integral, no fixture is needed for location
  • For information on hanger alignment, click here

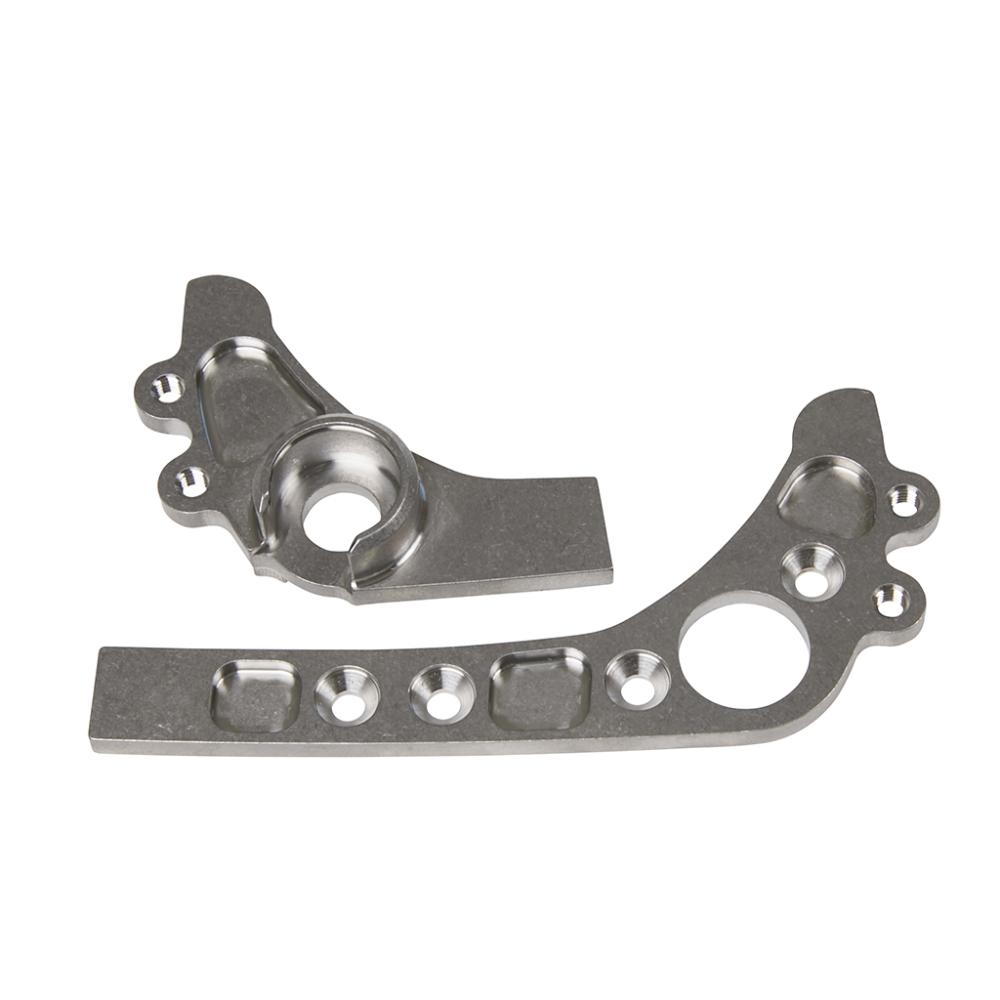

Low Mount Disc Brake Dropouts

This style of dropout is good for most modern, small, low-profile calipers.

12 mm Low Mount EyeletsLong Hanger12 mm HangersLow Mount No Eyelets

Materials

  • 1018 Steel

  • Available in 48 or 58 degree angles

  • Available with 4 each M5 x .8 eyelets, or without eyelets

Compatibility

  • 10 mm or 12 mm Hub

Purchase Separately

  • Hanger/Inserts,  available in different styles and colors:

    • 12 mm

      • Traditional hanger

      • Shimano Direct Mount (Mountain + Road)

      • SRAM

    • 10 mm

      • Long hanger (mountain)

      • Short Hanger (Road)

  • Skewers:

    • Available in a variety of lengths for 12 mm inserts

    • 23% off when purchased with a compatible insert

Information

  • Not all calipers will be able to fit properly in this confined space

  • We highly recommend doing a mock-up with the caliper you intend to use before you start building the frame

  • Because of the long length of the chainstay tab, heel clearance may be compromised

  • For maximum clearance put the chainstays on the inside face of the chainstay tab or use plugs

  • For information on hanger alignment, click here
