General Information
Our adjustable dropouts allow for different brake and derailleur configurations through the use of right and left-replaceable inserts. Consider the following when you select your frame component:
1) Aesthetics
2) Frame application
3) Weight of rider
4) Any other features that are important to you or your frame builder, i.e., the option to mount racks, use a belt drive system, etc.
Features
Important!
1) Right and left frame pieces
2) Hardware kit:
Four each:
Two each:
1) 17/4 stainless steel
2) 6/4 titanium
1) Flat
2) Flanged
Select frame component with hole and seatstay kit.
1) Stainless steel:
2) Titanium:
1) Right and left frame pieces
2) Hardware kit:
Two each:
One each:
1) 17/4 stainless steel
2) 6/4 titanium
1) No eyelets
2) Two M5 x .8 eyelets on each frame piece
3) Two x M5 x .8 eyelets on each frame piece with hole for seatstay kit on one frame piece
Select frame component with hole at purchase
1) Stainless Steel:
2) Titanium:
1) Right and left frame pieces
2) Hardware kit:
Four M8 x 1.25 x 16 steel BHCS
Four 2 mm thick single washers
1) 17/4 stainless steel
2) 6/4 titanium
1) Relieved
No eyelets
Two M5 x .8 eyelets on each frame piece
Two M5 x .8 eyelets on each frame piece with hole for seatstay kit on one frame piece
2) Full thickness
No eyelets
Two M5 x .8 eyelets on each frame piece
0.068"
0.030"
None
Select frame component with hole at purchase
1) Stainless steel:
5/8" OD x 0.035" wall tubing
5/8" OD x 12 x 1 mm wall tubing
2) Titanium:
3/4" OD x 0.035" wall tubing
General Information
Available in bare polished or black anodized 6061 aluminum
Available for 10 or 12 mm hubs
12 mm inserts have a M12 x 1.5 thread
Sliding dropout inserts move in a line
Rocker dropout inserts move in an arc
Fixed in position by clamping cap screws
Will wear out over time; inspect them regularly and replace as needed
Skewers are available at a 23% discount when purchased with a compatible right side insert; one skewer discount/insert
Preventing Slippage
Verify that your frame components and inserts are made by Paragon Machine Works; we cannot guarantee compatibility with products that are not made by us. Note: this is the number one reason why inserts slip!
Verify that the contact surfaces between the frame components and inserts are free of contaminants such as paint, dirt, grease, etc.; there must be metal to metal contact ONLY.
If you have verified the above and your inserts are still slipping, then we recommend:
Upgrading to titanium screws
Applying medium strength Loctite® Threadlocker Blue 242 to the screw threads:
Cures when confined in the absence of air between close fitting metal surfaces
Important!
Compatibility between components is only guaranteed when using parts made by Paragon Machine Works.
We cannot advise or make recommendations for parts made by other manufacturers.
ISO mount
No ISO mount
Rohloff Hub, ISO mount
140 mm post mount
160 mm post mount
Hanger
No hanger
Shimano Direct Mount, Mountain
140 mm post mount
160 mm flat mount
Rohloff A12 Hub, ISO mount
SRAM
Hanger
No Hanger
Rohloff A 12 Hub
Shimano Direct Mount Mountain
SRAM
140 mm flat mount
160 mm post mount
ISO mount
29.5 mm Hanger
No Hanger
SRAM
ISO mount
Alfine Hub, ISO mount
Rohloff Hub, ISO mount
160 mm post mount

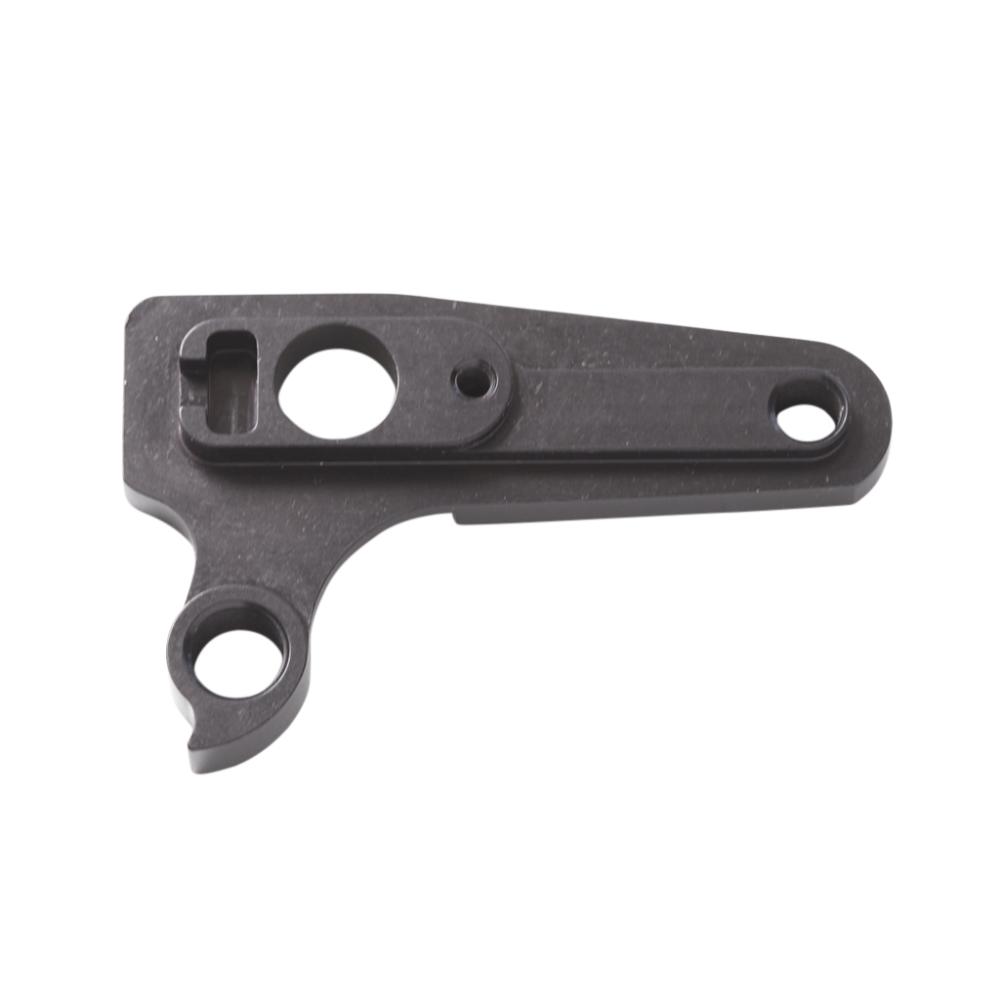

Hanger

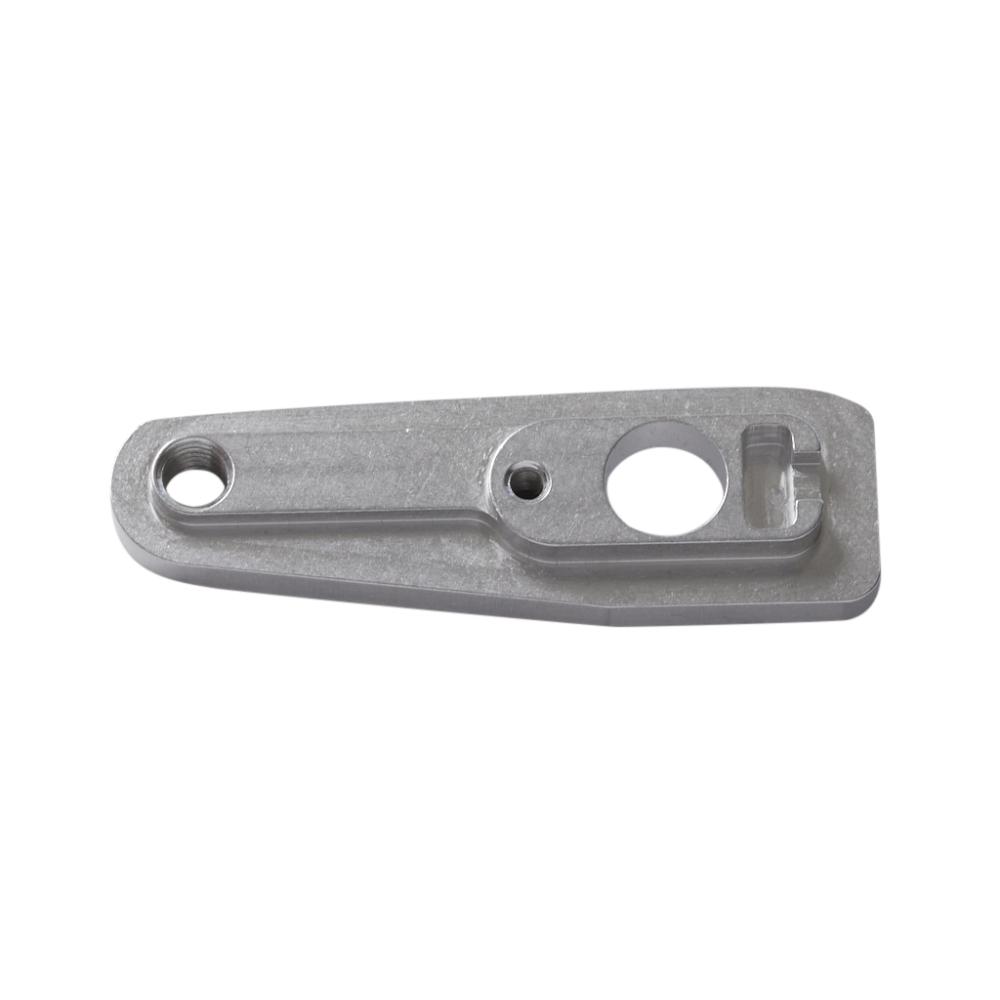

No hanger
Shimano Direct Mount, Mountain
Alfine Hub
160 mm flat mount
160 mm post mount
SRAM
Hanger
No Hanger
SRAM T-Type
SRAM Eagle
General Information
1) Always use our 304 stainless steel washers with the screw
2) Titanium screws offer the following advantages over our stock steel button head cap screw:
Torque Specs
24 to 26 N-m
2.4 to 2.6 Kg-m
17 - 19 foot/pounds
