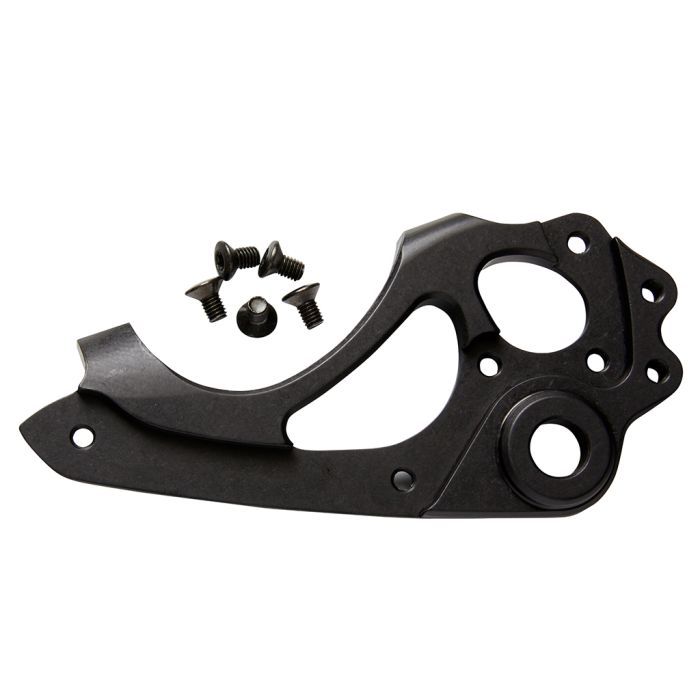

12 mm Left Side PolyDrop, Post Mount 160 Rotor, Eyelets: Choose Color

As low as $59.95

Only %1 left

Part #: Choose an option...

Compatible with PMW PolyDrop frame components, see Related Products below (discount taken in cart)

Product Details

Material: Bare or black anodized 6061 aluminum
Application:
- Left (non-drive) side replaceable insert for our 44 degree PolyDrop assembly
- Post mount for a 160 mm rotor
  - Mount thickness = 25 mm
  - Use 34.3 mm bolts supplied by Shimano
- Includes five M5 x .8 oval-head cap screws made from black zinc-plated steel
  - Torque specification = 7Nm or 60 inch pounds
  - Make sure that the insert and screws are clean
  - Use Blue Loctite (243) or other equivalent thread locking compound
Eyelets: Two M5 x .8
Compatibility: We are not able to advise or make recommendations on compatibility with products that are not manufactured by us.

Item sold as 6 piece set.

More Information
SKU	12 mm PolyDrop_Post Mount_160 Rotor_Eyelets
Insert Type	Post Mount
PDF Drawing	Post Mount 160 Rotor
STEP File (right click, "save as")	See individual product.
