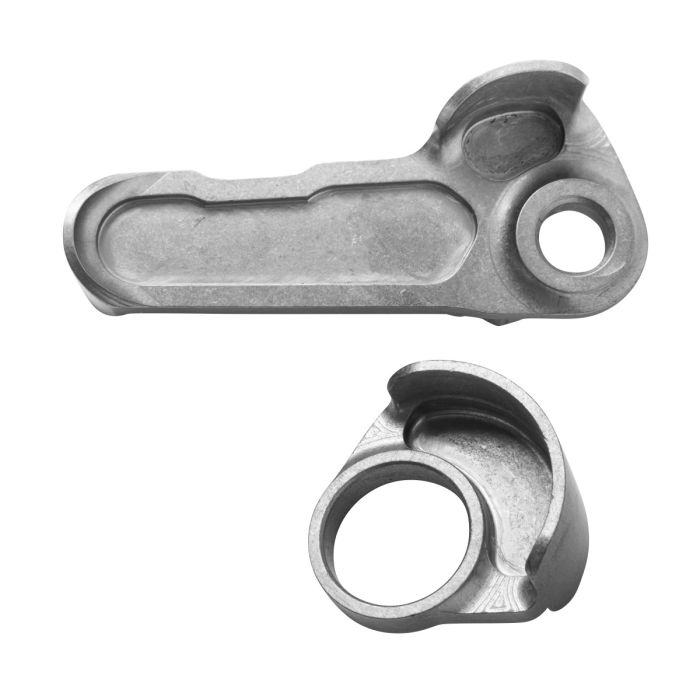

SRAM Full Mount/UDH Steel Flat Mount Dropout, Integrated 140/160 Rotor

Product Details

• Material: 1018 steel, includes right and left frame components
  • CUSTOM ENGRAVE your company name or logo on the left side frame component (see product photos for sample):

    • One time $65 programming and set up fee
    • $5/pair engraving charge
      • BUY 10+ PAIR FOR FREE SIMPLE ENGRAVING!
    • Engraving must be done during the manufacturing process, order in advance
    • Email orders(at)paragonmachineworks.com for more information

• Application:
  • SRAM Full Mount derailleurs and Universal Derailleur Hanger
  • Meets all SRAM specs
• OD: 1-3/4"
• Flanges:
  • Width: .985"
  • Symmetric seatstay flanges
  • There is approximately 2 mm per side to make the weld with 3/4" chainstays and 5/8" seatstays
  • Weld the tubes as far outboard as possible to avoid SRAM's clearance mask
• Caliper Mount:
  • Flat Mount Integrated for 140 mm (direct) or 160 mm (with adapter, adapter not included) rotor
  • Caliper mount thickness: 10 mm
• Wheel Alignment:

  • Concentric: use a 0 mm offset bushing
  • Eccentric:
    • Select a 0.5 or 1.0 mm offset bushing
    • For 0.5 or 1.0 mm bushings use a 2 mm hex key to rotate the insert using the radial holes on the flange
  • The bushing is a structural part of the assembly and must be welded in
    • Once installed it is not meant to be consumer serviced
  • Use the flats on the bottom of the dropout to index:
• Fabrication:  See "Fabrication" drawing for welding clearances
• Purchase Separately:

  • Hanger: SRAM Universal Derailleur hanger
    • Skewer hole is threaded M12 x1
  • Skewer:

    • Available at a 25% discount with the purchase of a compatible dropout
    • Skewer and dropout compatibility are only guaranteed when used with a compatible Paragon Machine Works product
    • Sorry, no returns on skewers. Please check skewer drawings for measurements before ordering
• Note: We are not able to advise or make recommendations on compatibility with products that are not manufactured by us

Item sold as pair.
