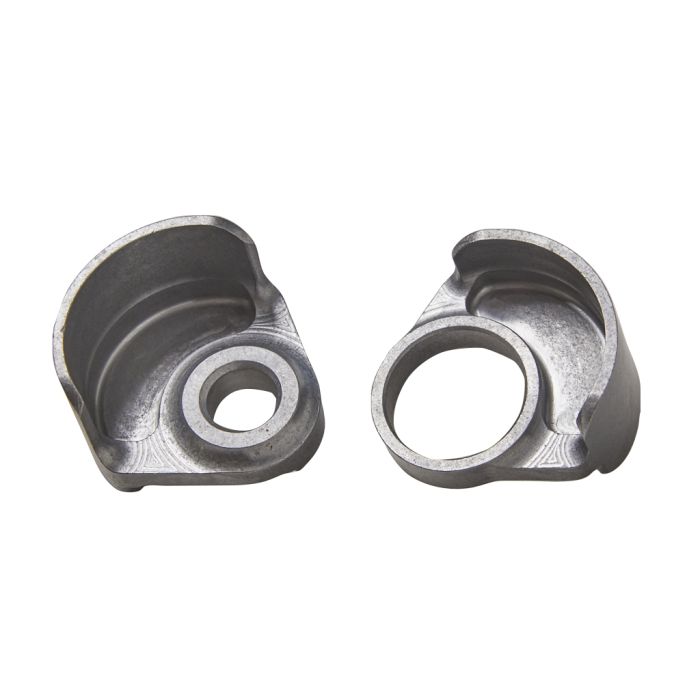

DR2073: Steel SRAM Full Mount/UDH Round, Rear Dropout, Eccentric

Product Details

• Material: 1018 steel, includes right and left frame components
• Application:
  • SRAM Full Mount derailleurs and Universal Derailleur Hanger
    • Meets all SRAM specs
• OD: 1-3/4"
• Flanges:
  • Width: 0.985"
  • Symmetric: Side-to-side chainstay and seatstay
  • Place the stays outboard as far as possible to avoid SRAM's clearance mask
• Wheel Alignment:

  • Concentric: use a 0 mm offset bushing
  • Eccentric:
    • Select a 0.5 or 1.0 mm offset bushing
    • For 0.5 or 1.0 mm bushings use a 2 mm hex key to rotate the insert using the radial holes on the flange
  • The bushing is a structural part of the assembly and must be silver brazed in
    • Once installed it is not meant to be consumer serviced
  • Use the flats on the bottom of the dropout to index
• Flat Mount Brake:
  • Use two individual caliper mounts, 3/4" OD or 5/8" OD
  • Because of the location of the chainstays, a 160 mm flat mount is recommended
  • For a straight seatstay, do not go less than 60 degrees between the chainstays and seatstays
• Purchase Separately here or see Related Products below:
  • Bushing: Concentric or eccentric
  • Hanger: SRAM Universal Derailleur Hanger
    • Skewer hole is threaded M12 x1
  • Skewer:

    • Available at a 23% discount with the purchase of a compatible dropout
    • Skewer and dropout compatibility are only guaranteed when used with a compatible Paragon Machine Works product
    • Sorry, no returns on skewers. Please check skewer drawings for measurements before ordering
  • Caliper Mount:
    • ISO, post, and flat mount options available for purchase
• Information: Click here for information on the SRAM UDH System
• Note: We are not able to advise or make recommendations on compatibility with products that are not manufactured by us

Item sold as pair.
