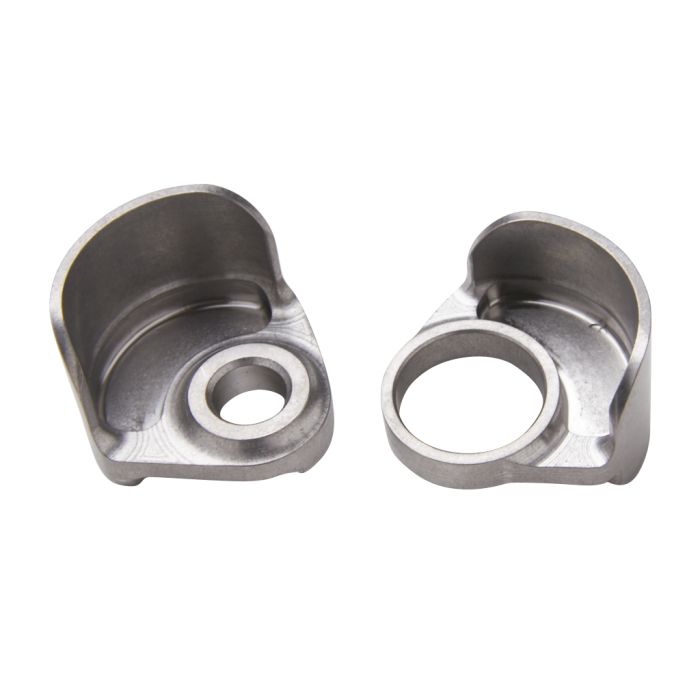

DR0073: Titanium SRAM Full Mount/UDH Round, Rear Dropout, Eccentric

Product Details

• Material: 6/4 titanium, includes right and left frame components
• Application:
  • SRAM Full Mount derailleurs and Universal Derailleur Hanger
    • Meets all SRAM specs
• OD: 1-3/4"
• Flanges:
  • Width: 1.180"
  • Symmetric: Side-to-side chainstay and seatstay
  • There is approximately 3 mm per side to make the weld with 7/8" chainstays
  • There is approximately 5.5 mm per side to make the weld with 3/4" seatstays
  • Push the seatstay outboard as far as possible to avoid SRAM's clearance mask
• Wheel Alignment:

  • Concentric: use a 0 mm offset bushing
  • Eccentric:
    • Select a 0.5 or 1.0 mm offset bushing
    • For 0.5 or 1.0 mm bushings use a 2 mm hex key to rotate the insert using the radial holes on the flange
  • The bushing is a structural part of the assembly and must be welded in
    • Once installed it is not meant to be consumer serviced
  • The chainstay center MUST be 3.5 mm above axle center to meet SRAM's specs
  • Use the flats on the bottom of the dropout to index:

    • Put a straight edge on the flat and postition it 13 mm +/- 3 mm below bottom bracket center
• Purchase Separately:

  • Hanger: SRAM Universal Derailleur hanger
    • Skewer hole is threaded M12 x1
  • Skewer:

    • Available at a 23% discount with the purchase of a compatible dropout
    • Skewer and dropout compatibility are only guaranteed when used with a compatible Paragon Machine Works product
    • Sorry, no returns on skewers. Please check skewer drawings for measurements before ordering
  • Caliper Mount:
    • Flat:
      • Because the chainstays are raised 3.5 mm above axle center line, a 160 mm flat mount is required. Select one of the following mounting options:
        • Use two 5/8" OD individual caliper mounts, BK0030 or
        • Use one 5/8" OD individual caliper mount, BK0030 , and one 3/4" OD individual caliper mount, BK0035 (install near dropout)
      • For a straight seatstay, do not go less than 60 degrees between the chainstays and seatstays
    • ISO: Select miter or no miter
    • Post: Select miter or no miter
• Note: We are not able to advise or make recommendations on compatibility with products that are not manufactured by us

Item sold as pair.
