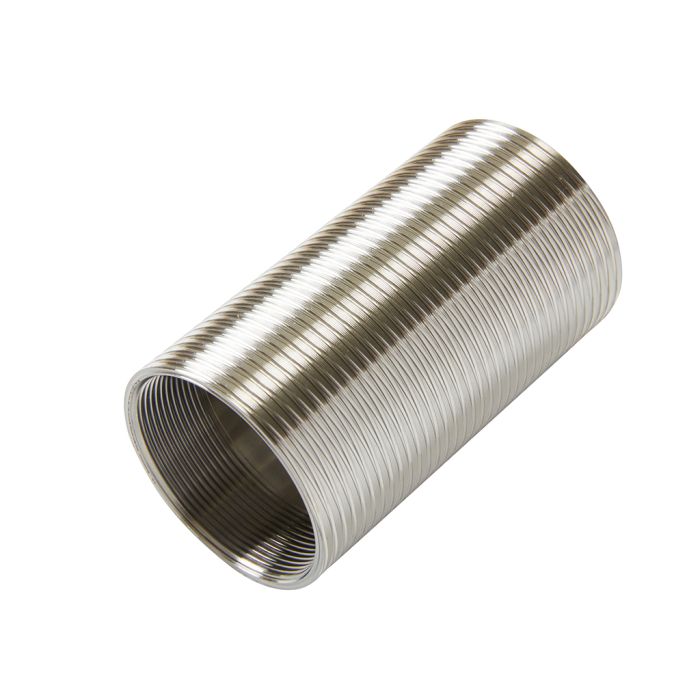

BB0002: Titanium Threaded, Textured, 1.500" OD x 68 mm

Product Details

• Material: 1-5/8" x .151" wall 3/2.5 titanium tubing.
• OD: 1.500"
• Width: 68 mm
• Relief: On the ID to 1.385"/1.395".
• Threads:
  • 1.370"-24, right and left hand; compatible with all modern threaded bottom brackets.
  • Thread length = 0.50".
  • Left hand thread is identified by a radial groove on the outside diameter and face of the shell.
  • Minor diameter = 1.330"/1.340".
• Texture: The center 2.14" is textured to provide a mechanical interface with the bonding epoxy used in carbon fiber frame production.
• Heatsink: FT5002 (see Related Products below).

Item sold individually.
